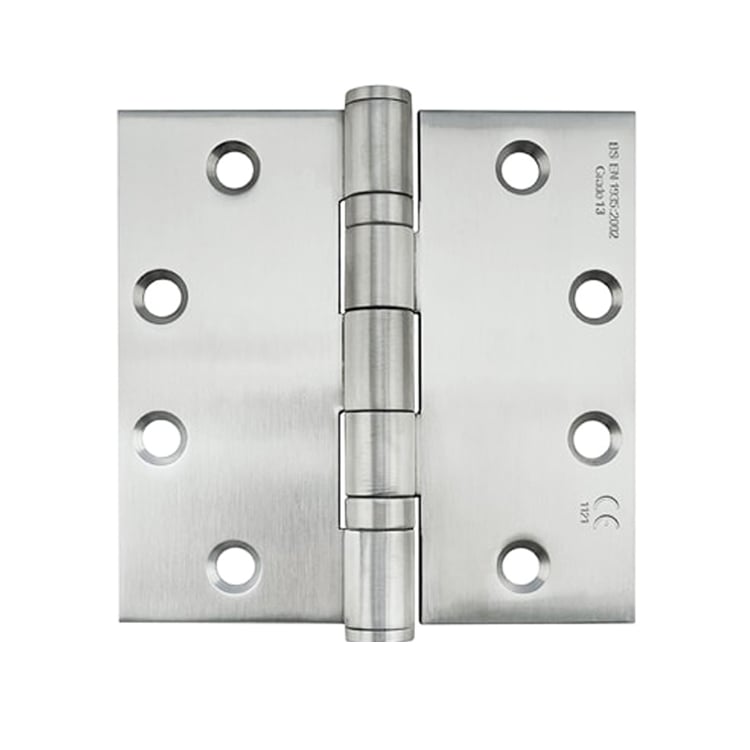

Stainless steel ball bearing butt hinge HB454534

Stainless steel ball bearing butt hinge 4.5” x 4.5” x3 .4mm, Factory Direct

Specification

Model No.HB454534
MaterialAISI304(AISI316)
Size4.5″ x 4.5″ x 3.4mm
Thickness3.4mm
FinishUS32D,US32,Satin PVD, Bright PVD
Corner TypeSquare corner
Installation MethodScrew fixings
Max Door Weight120KG
Ball BearingYes
Fire TestYes
CertificateCertifire, EN1935, EN1634, CE, etc.


>>  Get Complete Door Hinge Catalog

Product Detail

UNITY ball bearing butt hinge HB454534 comes in the size of 4.5” x 4.5” x 3.4mm; And it is suitable for a wide range of door thickness/weight(up to 120kg).

Stainless steel ball bearing butt hinge HB454534-2

Specifications and Features

– AISI304 stainless steel material for high corrosion resistance (AISI316 material available)
– Hardened Ball Bearings
– Square and radius corner version available
– Template drilled for easy installation and retrofitting purpose
– Designed for metal or timber fire rate door set
– Dogbolt version optional for enhanced security
– Mortise ball bearing butt hinge HB454534 is suitable for a wide range of door thickness/weight (up to 120kg)
– Supplied with CSK stainless steel screws



EN1935:2002 Classifications

Standard Hinges

4761*14013

Dogbolt Hinges

4761*14013

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.



Finishes

– Satin Stainless Steel (US32D/630)
– Polished Stainless Steel (US32/629)
– Satin PVD Titanium
– Bright PVD Titanium

*Other finishes available on request




UNITY Mortice Door Hinge

Unity offers a standard range of hinges as well as the capability to produce hinges to the customer’s specifications.
For the standards and tests, Unity’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10) and also fire rated to EN1634-1.
