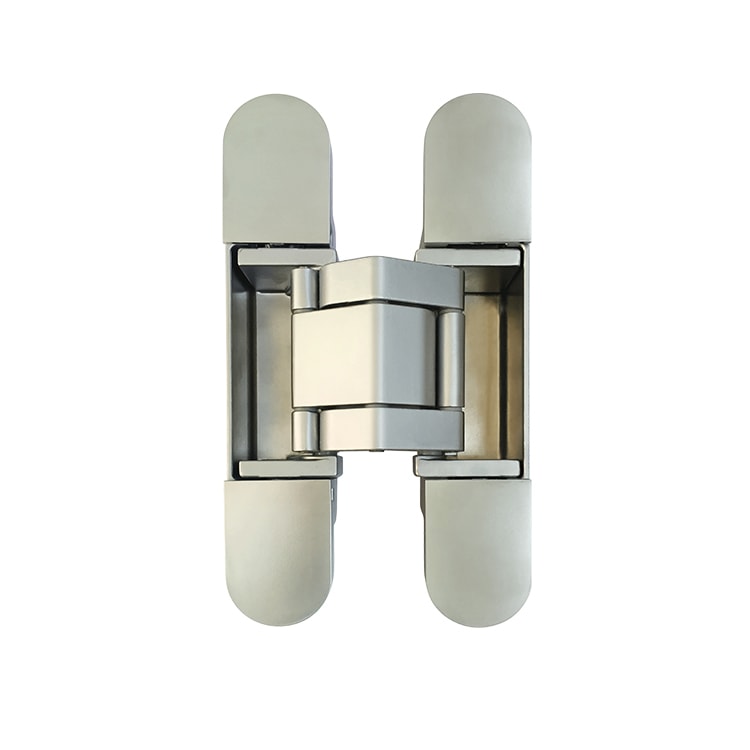

HAC208 zinc alloy adjustable concealed hinges for doors weighted 80kg

UNITY HAC208 adjustable concealed hinges for doors weighted 80kg are elegant and durable for timber/wood, steel, and aluminum frame doors.

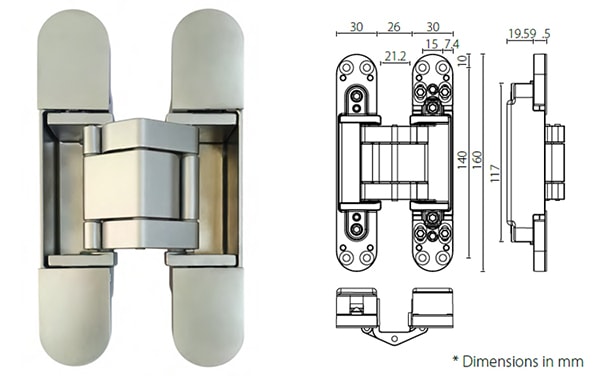

HAC208 zinc alloy adjustable concealed hinges-3

Specification and Features
– HAC208 concealed hinges for 80kg doors are made of zinc alloy material
– Wide 3-dimensional adjustment tolerance for more flexible installation
– Non handled the installation
– Matching cover plate for concealed fixing

Available Finishes	Technical Data
– Satin Chrome (SC) – Bright Chrome (BC) – Satin Nickel (SN) * Other finishes available on request	– Max. door weight (with 2 hinges): 80kgs – Min. door thickness: 48mm – Max. door width: 1000mm – Max. door height: 2100mm – Max. opening angle: 180°

Standards and Tests
– High Corrosion Resistance tested according to EN1670:2007
– 200,000 cycles tested on 80kg door mass according to EN1935: 2002

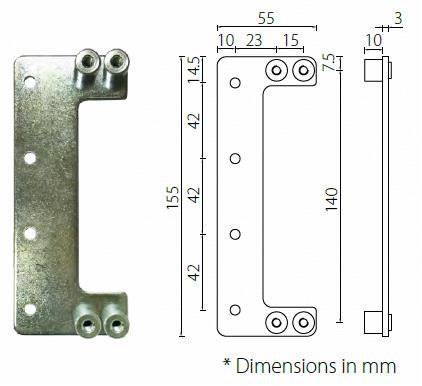

Mounting Plate

HAC208 zinc alloy adjustable concealed hinges-Mounting Plate

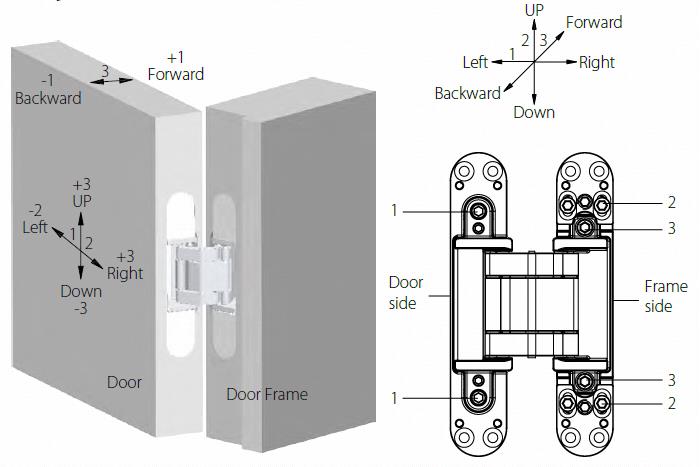

Adjustment

HAC208 zinc alloy adjustable concealed hinges-adjustment

1. Horizontal adjustment (X-Axis): (-2mm, +2mm)
2. Vertical adjustment (Y-Axis): (-2.5mm, +2.5mm)
3. Depth adjustment (Z-Axis): (-1mm, +1mm)

* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
