Euro Cylinder/

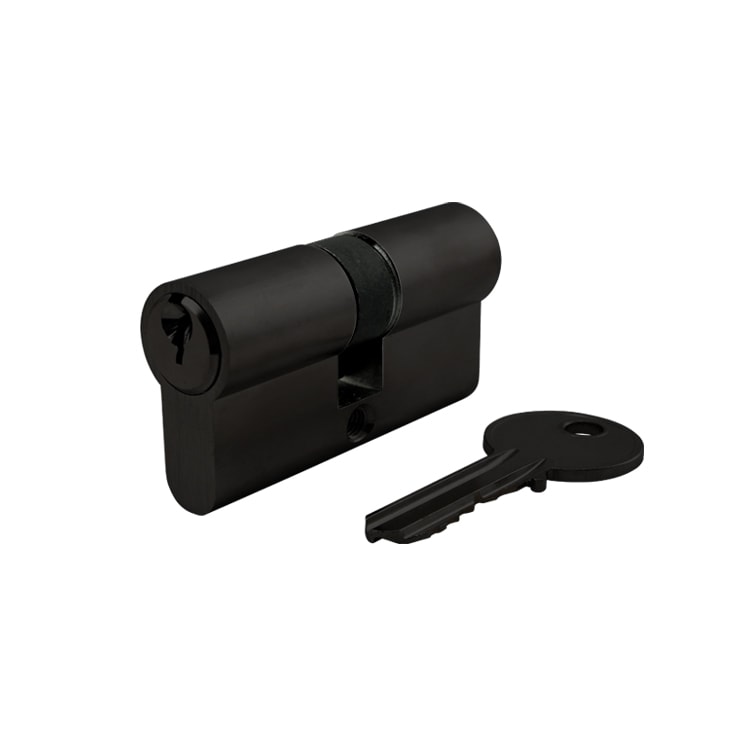

Black euro cylinder double profile cylinder ECS3030-BK

Model No.ECS3030-BK
MaterialBrass
Total Length60mm(30/30), or custom
Lock Pins6 pins, or 5 pins
TypeDouble profile cylinder
FunctionAnti-drill & Anti-pick
FinishSN/NP/BP/AB,Custom
StandardEN1303, EN1634, DIN18252
Keyway“S” keyway
Master KeyAvailable

Print It
  • Product Detail
  • Key Bow Options
  • Related Products
  • Standards and Certification

UNITY ECS3030-BK double profile black euro cylinder is made of solid brass; keyed operation from either side (inside or outside), and KD pack are also available.

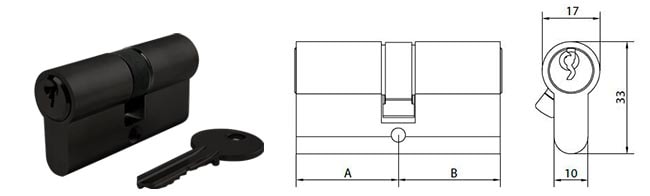

Black euro cylinder double profile cylinder ECS3030-BK-1

A=30mm     B=30mm

Specifications and Features
– Standard euro profile dimension according to DIN18252
– Solid brass body and keys
– 5 or 6 pins constructions
– ECS3030-BK double profile black euro cylinder has various lengths available for different door thickness
– Symmetrical and asymmetrical variants available to work with different lock installation positions
– Optional anti-drill pins and anti-pick pins
– Enhanced attack resistance provided by UNITY security escutcheons
– Master keying service available upon request

GMK Euro Cylinder from UNITY Hardware

EN1303:2005 Classification

16010C52

Finishes

– Satin Nickel (SN)
– Brass Polished (BP)
– Nickel Plated (NP)
– Antique Brass (AB)

Various finishes available upon request for UNITY Euro Cylinders

Available Functions

Modern matte black lock cylinder with thumbturn 30mmX30mmUNITY modern matte black asymmetrical single sided euro cylinder ECS1030-BKBlack profile cylinder ECS3030WC-BK for privacybathroom
Matte Black double profile cylinder with thumb turnMatte Black Asymmetrical Single Euro CylinderModern Matte Black Privacy/Bathroom Euro Cylinder




About UNITY Euro Cylinder
UNITY’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliant to EN1303:2005 standards for commercial/industrial standards.

Based on the keying system, we have KD Euro Cylinder, KA Euro Cylinder, and Master Key Cylinder;

For the function, we have anti-pick, anti-drill, anti-snap cylinders;

For the shape, we have symmetrical and asymmetrical one, also oval cylinders. What is more, we also custom some special models upon request within our production range.

>> Full Catalog Download
>> Quick Inquiry and Quote

Key Bow Options for for ECS euro cylinder

Related products for ECS euro cylinders

EN Exova-1303 2005 For Euro Cylinder
Successfully type-tested for conformity to all of the requirements of EN1303:2005
Exova EN1634-1 2014 For Euro CylinderSuccessfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014
Warrington For Euro CylinderAll tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
