Black nickel euro profile cylinder,custom size/function

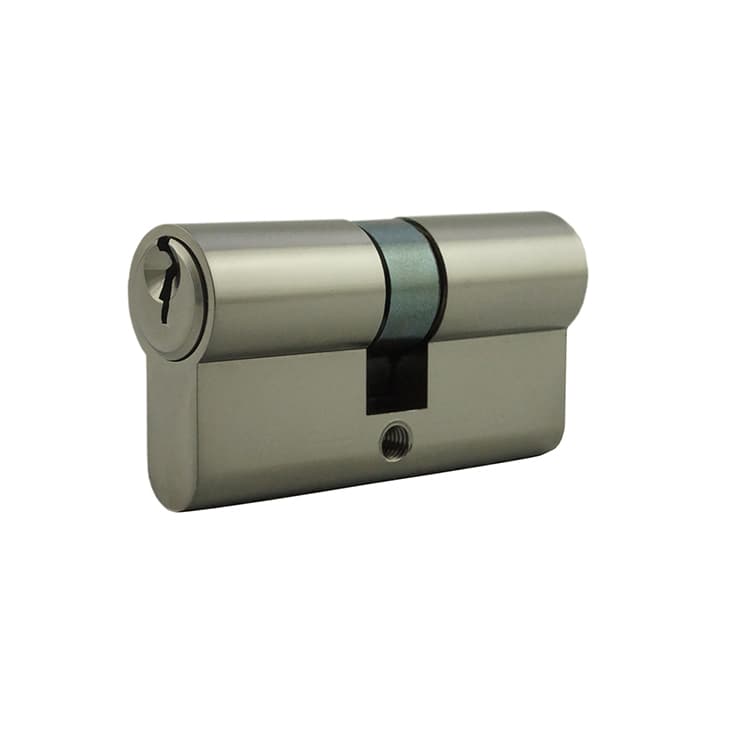

UNITY ECS3030-BN black nickel euro profile cylinder is made of solid brass, keyed operation from either side (inside or outside), and KD pack also available.

Specifications and Features

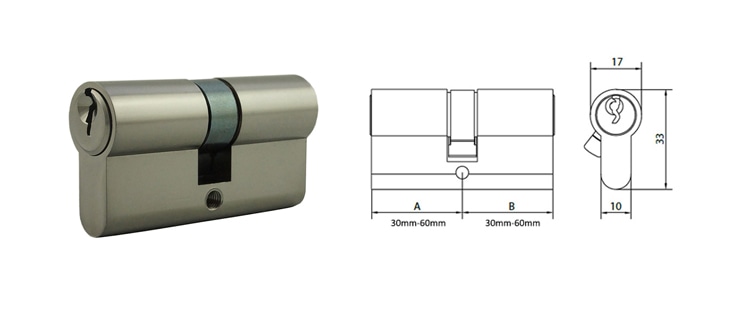

– Standard euro profile dimension according to DIN18252
– Solid brass body and keys
– 5 or 6 pins constructions
– ECS3030-BK black nickel euro profile cylinder keyed alike have various lengths available for different door thickness
– Symmetrical and asymmetrical variants available to work with different lock installation positions
– Optional anti-drill pins and anti-pick pins
– Enhanced attack resistance provided by UNITY security escutcheons
– Master keying service available upon request

EN1303:2005 Classification

Finishes

– Satin Nickel (SN)
– Brass Polished (BP)
– Nickel Plated (NP)
– Antique Brass (AB)

About UNITY Euro Cylinder
UNITY’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliance to EN1303:2005 standards for commercial/industrial standards.

Based on the keying system, we have KD Euro Cylinder, KA Euro Cylinder, and Master Key Cylinder;

For the function, we have anti-pick, anti-drill, anti-snap cylinders;

For the shape, we have symmetrical and asymmetrical one, also oval cylinders. What is more, we also custom some special models upon request within our production range.
