Door Lock/

BTL20 bolt through tubular latch with 64mm/76mm case

MaterialBrass & Steel
Case Size64mm (2.5”) and 76mm (3”)
Models AvailableBTL201: 64mm Nickel Plated (NP)
BT202: 64mm Polish Brass (PB)
BTL203: 76mm Nickel Plated (NP)
BT204: 76mm Polish Brass (PB)



 >> Get Complete Mortice Lock Catalog

Print It
  • Product Detail

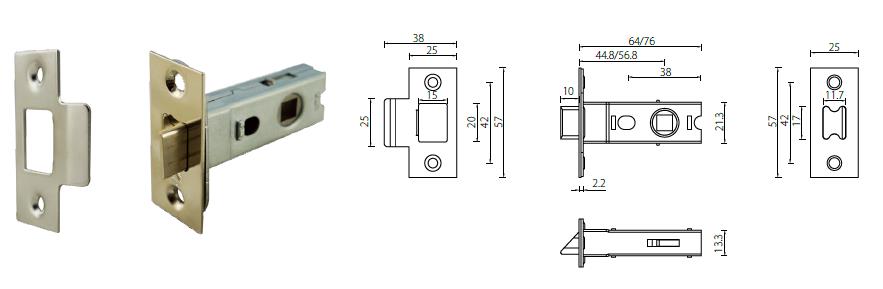

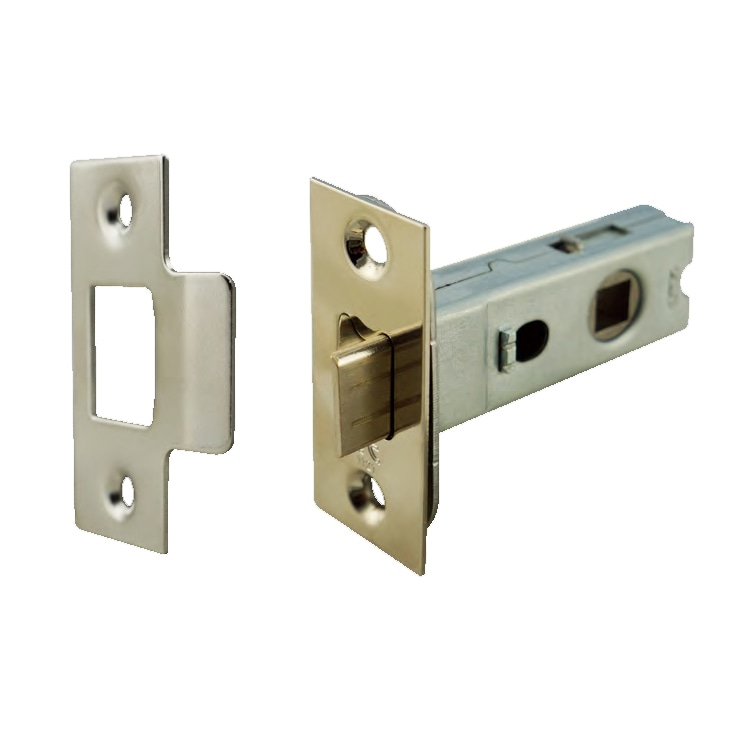

BTL20 bolt through tubular latch with 64mm 76mm case

Specifications and Features

– BTL20 bolt through tubular latch is available in 64mm (2.5”) and 76mm (3”) case size
– Non handed installation
– Brass Latchbolt and Solid Steel Follower for durable performance
– Steel Forend and Strike in double forend reinforcement design
– Standard finish: Nickel Plated (NP) and Polish Brass (PB)
– Suitable for sprung furniture with 38mm through-bolt fixing
– Tested to EN12209:2003
– Can be fire rated to EN1634-1
– Suitable for light to the medium-duty application
