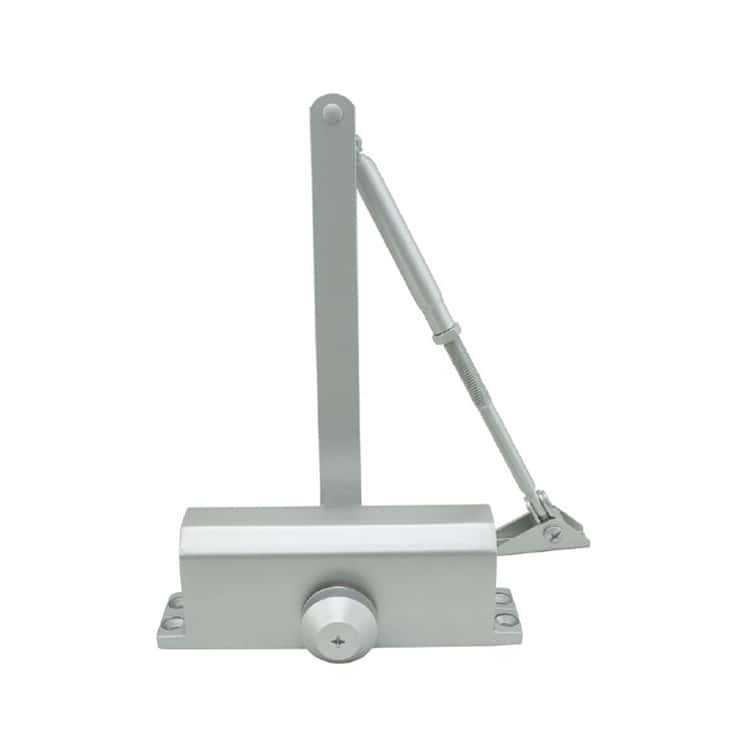

DC2003 light duty commercial door closer for 60kg door mass

DC2003 light duty commercial door closer for 60kg door mass

Model No.:	DC2003
Material:	Aluminum Alloy Pressure Die-Cast
Finish:	Silver/White/Black/Gold, or custom
Standards:	EN1154/EN1634/CE/Intertek/UL 10C

Print It

Product Detail
Standards and Certification

UNITY DC2003 commercial door closer is a cost-effective overhead door closer suitable for light-duty application. And for the material, it is aluminum alloy pressure die-cast.

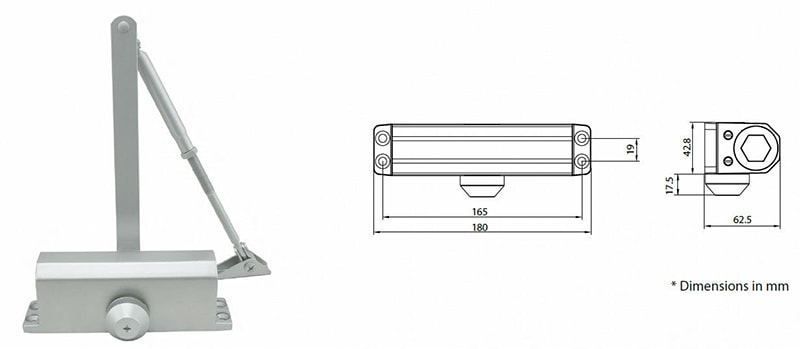

DC2003 light duty commercial door closer-size

DC2003 Commercial Door Closer Item List

Item No.	Description
DC2003	Door Closer with Standard Arm

Specification and Features

– Rack and Pinion Construction
Heat-treated rack and pinion immersed in high-grade oil to give a smooth action and minimum wear and tear
– Fixed Power Size EN3

DC2003	EN3
Маx. Door Width (mm)	950
Маx. Door Weight (kgs)	60
Маx. Opening Angle	180°

– Non-Handed
DC2003 can be universally fitted on both left and right-handed swing door

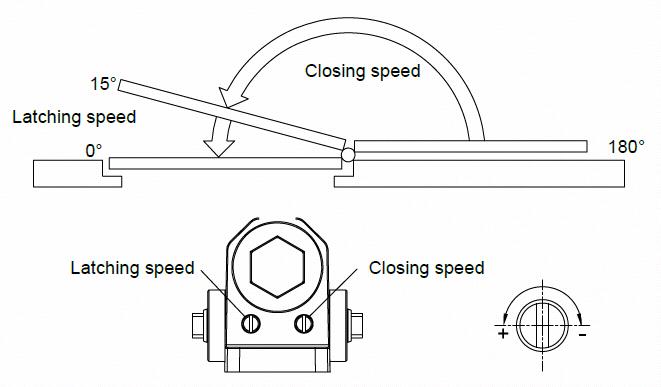

– Adjustable Latching and Closing Speed
DC2003 is supplied with hydraulic controlled valves to adjust latching and closing speed

DC2003 commercial door closer-speed adjutment

Finishes of DC2003 Door Closer

– AL
– White
– Black
– Gold
– Other finishes available on request

EN1154 Classification

	Successfully type-tested for conformity to all of the requirements of EN1154:1996/A1:2002/AC:2006 including the additional requirements for latch action/backcheck /adjustable closing force.
	Successfully passed 60 minutes fire test of metal door assemblies to EN1634-1
	CE Marking: CE Declaration of Conformity available on request
	All tests performed independently and certified by Intertek Testing and Certification Ltd. in the UK
