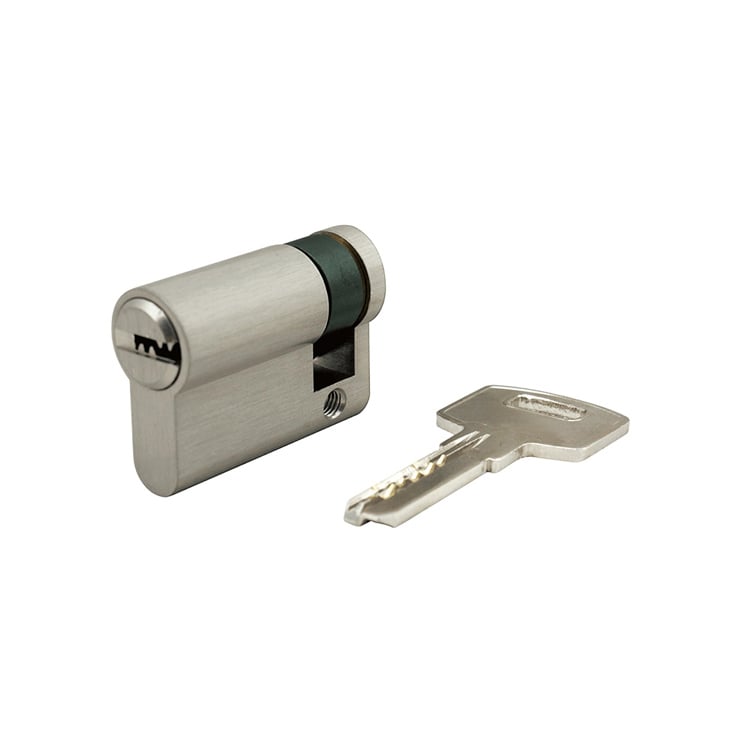

ECD1030 single profile half euro cylinder

Model No.ECD1030
MaterialBrass
Total Length40mm(10/30), or custom
Lock Pins6 pins
TypeSingle profile cylinder
FunctionAnti-drill & Anti-pick
FinishSN/NP/BP/AB,Custom
StandardEN1303, EN1634, DIN18252
KeywayComputer key



 >> Get Complete Euro Cylinder Catalog

Print It
  • Product Detail
  • Key Bow Options
  • Related Products
  • Standards and Certification

ECD1030 single profile half euro cylinder is designed with a dimpled pin system suitable for commercial and residential applications. Keyed operation from one side (outside) only.

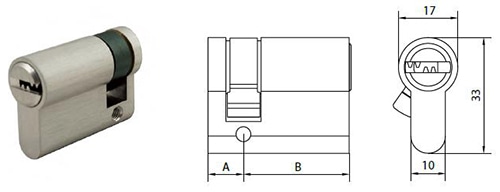

ECD1030 half euro cylinder

A=10mm     B=30mm

Other sizes available

Item No.A

(30-60MM)

B

(30-60MM)

ECD10301030
ECD10351035
ECD10401040
ECD10451045

Specifications and Features
– Standard euro profile dimension according to DIN18252
– ECD1030 single profile half euro cylinder is made of solid brass body and keys
– Reversible key operation (double-sided dimpled keys)
– Various lengths available for different door thickness
– Symmetrical and asymmetrical variant available to work with the different lock installation position
– 6 pins construction to maximize key combination and security
– Anti-drill pins and Anti-pick pins available upon request
– Enhanced attack resistance provided by UNITY security escutcheons

EN1303:2005 Classification

16010C52

Finishes

– Satin Nickel (SN)
– Brass Polished (BP)
– Nickel Plated (NP)
– Antique Brass (AB)

ECD euro cylinder with various finishes


About UNITY Euro Cylinder
UNITY’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliant with EN1303:2005 standards for commercial/industrial standards.

>> Full Catalog Download
>> Quick Inquiry and Quote

UNITY Key Bow Options

Stainless Steel Security Escutcheons

UNITY stainless steel security escutcheons

EN Exova-1303 2005 For Euro Cylinder
Successfully type-tested for conformity to all of the requirements of EN1303:2005
Exova EN1634-1 2014 For Euro CylinderSuccessfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014
Warrington For Euro CylinderAll tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
