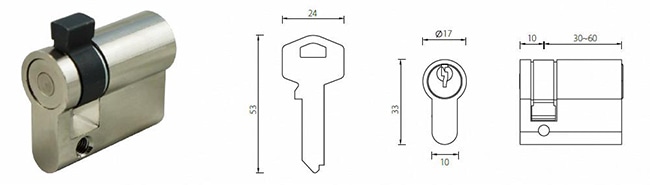

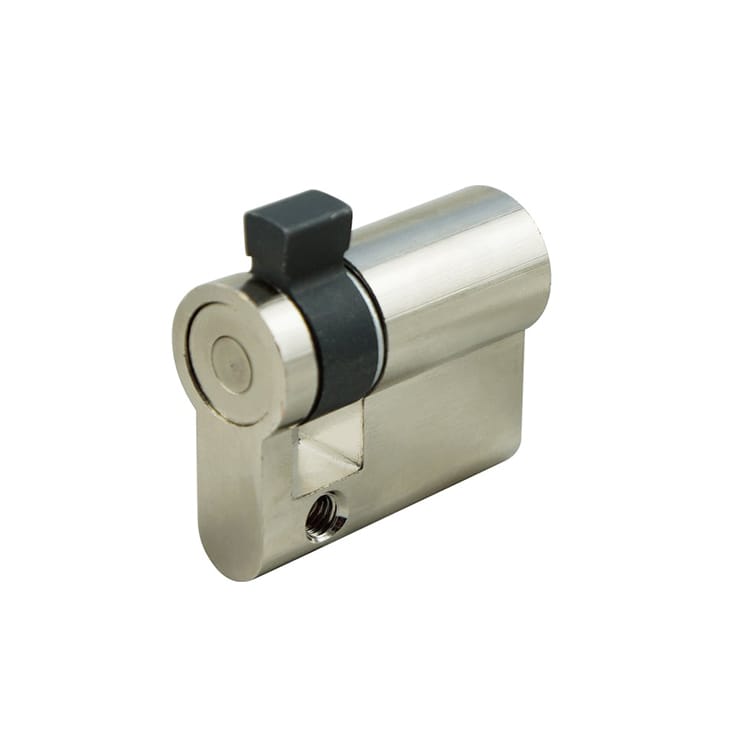

ECS-AC1030 euro profile single cylinder with adjustable cam

– ECS-AC1030 euro profile single cylinder is suitable for application requiring a cam degree to be adjustable at locking position
– Euro profile single cylinder is made of full brass body / core / keys, 5 pins design
– 8 cam position adjustability from the back from the cylinder
– Finish Options: SN, PB, AB. Other finishes available upon request
– Standard 40mm model: ECS-AC1030

About UNITY Euro Cylinder
UNITY’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliance to EN1303:2005 standards for commercial/industrial standards.

Based on the keying system, we have KD Euro Cylinder, KA Euro Cylinder, and Master Key Cylinder;

For the function, we have anti-pick, anti-drill, anti-snap cylinders;

For the shape, we have symmetrical and asymmetrical one, also oval cylinders. What is more, we also custom some special models upon request within our production range.
