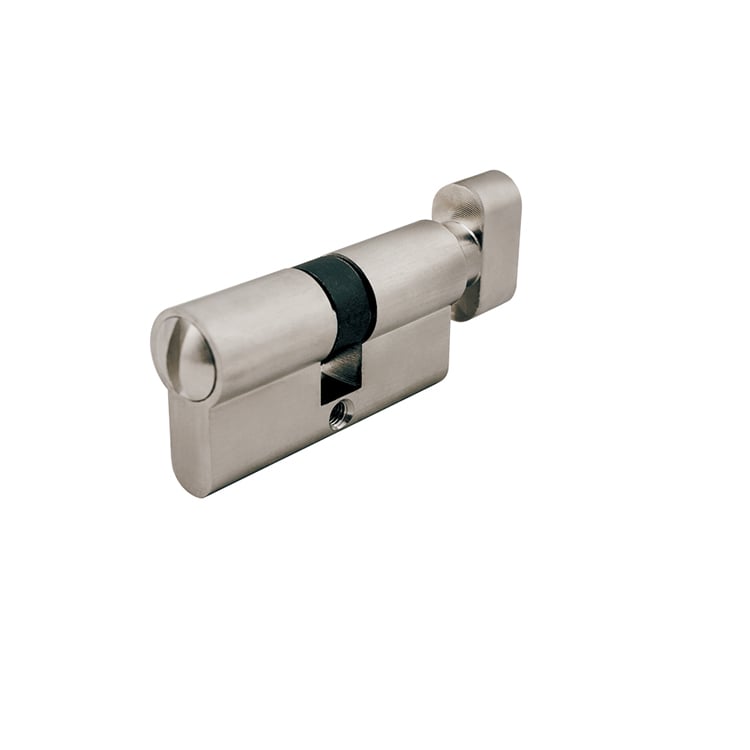

Euro Profile Privacy Cylinder with Thumb-turn ECS Series

Euro profile privacy cylinder with thumb-turn is suitable for both commercial or residential applications, with specific access requirements; For operation, thumb-turn operated from inside and the emergency release slot operated from outside.

Specifications and Features

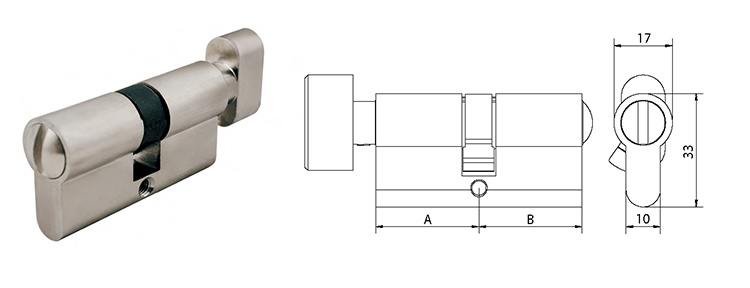

– Standard euro profile dimension according to DIN18252
– Solid brass material
– 5 or 6 pins constructions
– Master key Euro Profile DIN18252 mortice lock privacy cylinder can be customized with various lengths, to fit different door thickness
– Symmetrical and asymmetrical variants are available to work with different lock installation positions
– Optional anti-drill pins and anti-pick pins
– Enhanced attack resistance provided by UNITY security escutcheons

 Finishes

– Satin Nickel (SN)                                   – Brass Polished (BP)

– Nickel Plated (NP)                                 – Antique Brass (AB)

Available Sizes For Privacy/Bathroom Cylinder

Application: Thumb-turn operated from inside and emergency release slot operated from outside

EN1303:2005 Classification

Standards and Certification

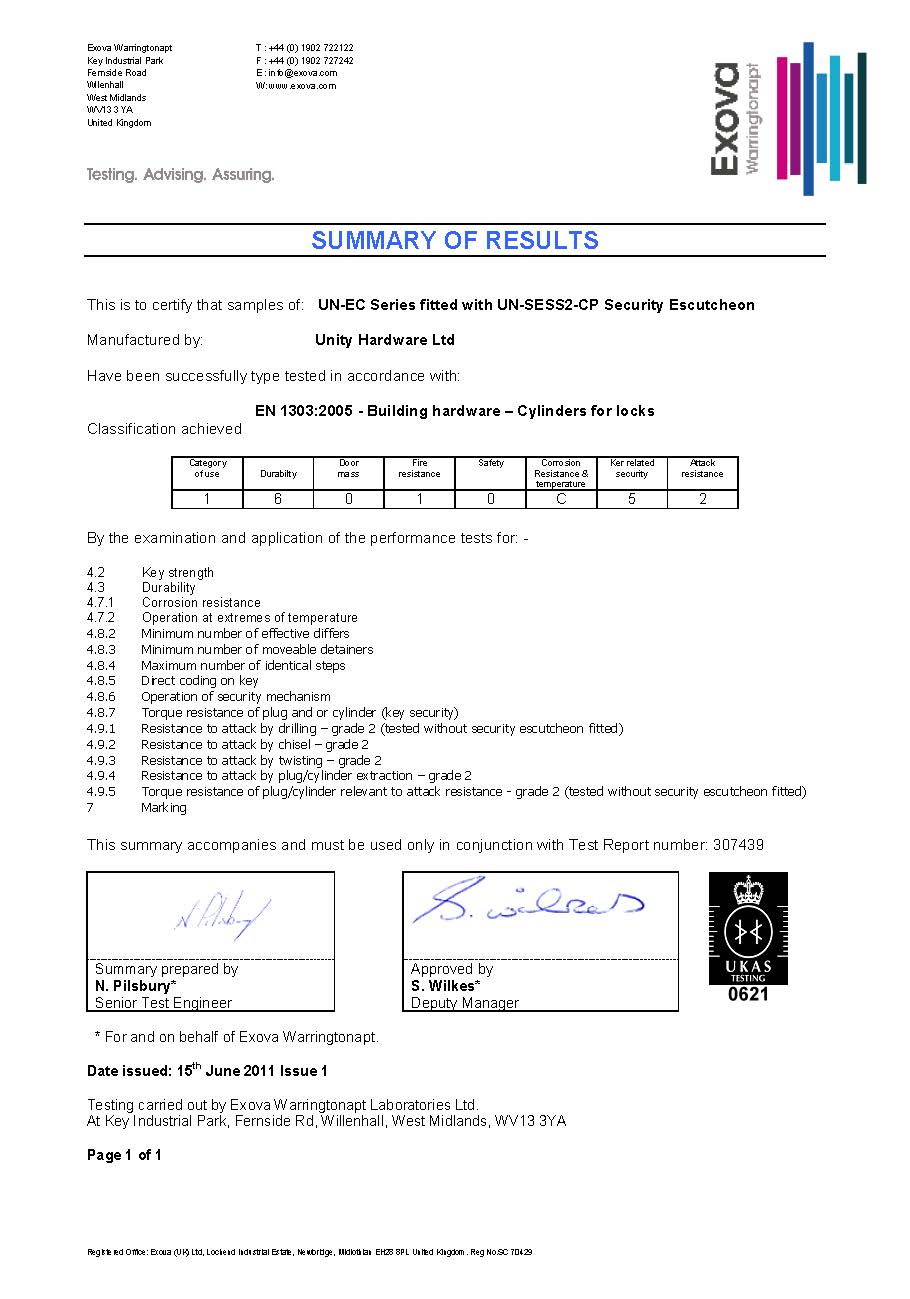

Successfully type-tested for conformity to all of the requirements of EN1303:2005

Successfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014

  All tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
