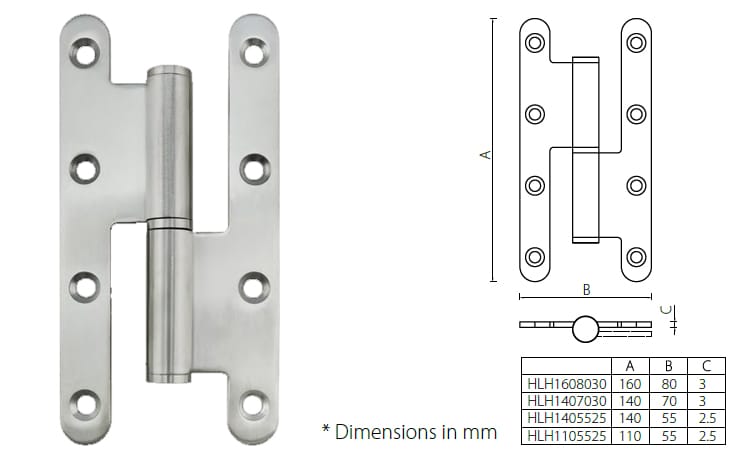

UNITY HLH Series H type lift off hinge is made of satin stainless steel with ball bearing, it is used for max. door weight 60kg.
| Item No. | L(mm) | W(mm) | Thickness(mm) | Door Mass(kg) |
| HLH1608030 | 160 | 80 | 3.0 | 60 |
| HLH1407030 | 140 | 70 | 3.0 | 60 |
| HLH1405525 | 140 | 55 | 2.5 | 40 |
| HLH1105525 | 110 | 55 | 2.5 | 40 |
Standard Finish: Satin Stainless Steel
Specifications and Features
– Material: Stainless steel
– Square radius door hinge with two leaf plates
– Installation screws available
– Application: Suitable for residential and commercial doors with max. weight of 60kg
