HAB10 series 180 degree concealed hinge with small size

HAB10 series small size 180 degree concealed hinge is suitable for the door weight of 40kg~60kg.

Specification and Features
– HAB10 180 degree concealed hinge is suitable for timber/wood doors and frame
– 3-dimensional adjustment for better alignment between door and frame
– Handed installation; handing to be specified when ordering
– Visible mounting screws

Available Finishes
– Satin Chrome (SC)
– Bright Chrome (BC)
– Satin Nickel (SN)
* Other finishes available on request

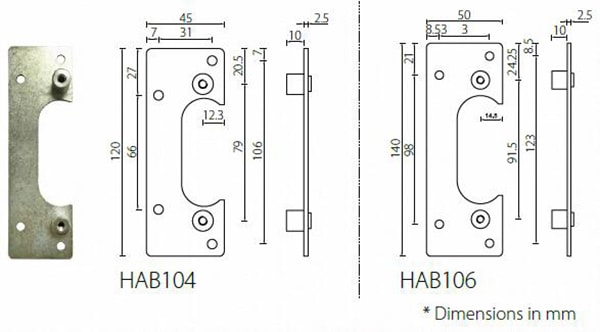

Mounting Plate

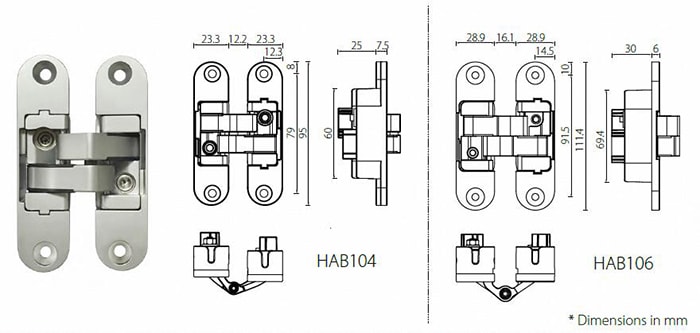

Technical Data

Standards and Tests
– High Corrosion Resistance tested according to EN1670:2007
– 200,000 cycles tested on 80kg door mass according to EN1935: 2002

* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
