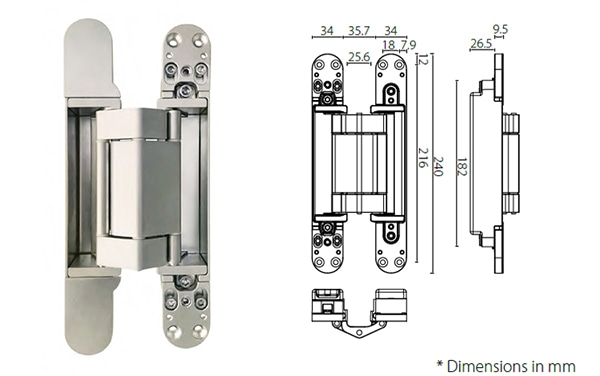

HAC216 heavy duty concealed hinge for max. door weight 160kgs

UNITY HAC216 adjustable heavy duty concealed hinge is suitable for max. door weight of 160kg.

Specification and Features
– HAC216 heavy duty concealed hinge is suitable for timber/wood, steel, and aluminum frame doors
– Wide 3-dimensional adjustment tolerance for more flexible installation
– Non handled the installation
– Matching cover plate for concealed fixing

Standards and Tests
– High Corrosion Resistance tested according to EN1670:2007
– 200,000 cycles tested on 80kg door mass according to EN1935: 2002

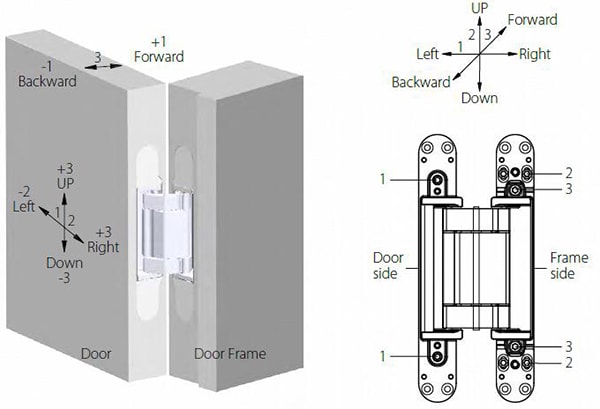

1. Horizontal adjustment (X-Axis): (-2mm, +2mm)
2. Vertical adjustment (Y-Axis): (-2.5mm, +2.5mm)
3. Depth adjustment (Z-Axis): (-1mm, +1mm)

* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
