Master Key Euro Profile Cylinder With Custom Finishes

Master key euro profile cylinder is a type of manageable euro cylinder, with keying ability, it is suitable for both commercial or residential applications with specific access requirements.

Specifications and Features

– Standard euro profile dimension according to DIN18252
– Solid brass material
– 5 or 6 pins constructions
– Master key Euro Profile DIN18252 mortice lock cylinder can be customized with various lengths available for different door thickness
– Symmetrical and asymmetrical variants are available to work with different lock installation positions
– Optional anti-drill pins and anti-pick pins
– Enhanced attack resistance provided by UNITY security escutcheons
– Master keying service available upon request

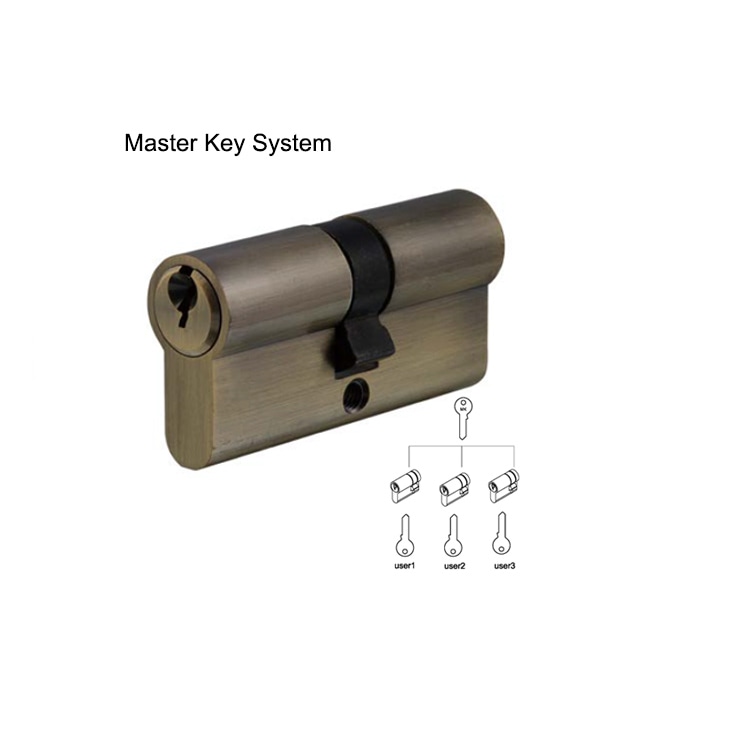

master keying system of UNITY euro profile cylinder

Finishes

– Satin Nickel (SN)

– Brass Polished (BP)

– Nickel Plated (NP)

– Antique Brass (AB)

Available Sizes For Different Models

Double Profile Cylinder

Application: Keyed operation from either side (inside or outside).

Item No.	A (30-60MM)	B (30-60MM)
ECS3030	30	30
ECS3035	30	35
ECS3535	35	35
ECS4040	40	40

Double Profile Cylinder with Thumb-turn

Application: Keyed operation from one side (outside) and thumb-turn operated from the other side (inside).

Item No.	A (30-60MM)	B (30-60MM)
ECS3030TK	30	30
ECS3035TK	30	35
ECS3535TK	35	35
ECS4040TK	40	40

Single Profile Cylinder

Application: Keyed operation from one side (outside) only.

Item No.	A	B (30-60MM)
ECS1030	10	30
ECS1035	10	35
ECS1040	10	45
ECS1045	10	45

EN1303:2005 Classification

Standards and Certification

EN Exova-1303 2005 For Euro Cylinder Successfully type-tested for conformity to all of the requirements of EN1303:2005

Successfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014

Warrington For Euro Cylinder All tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
