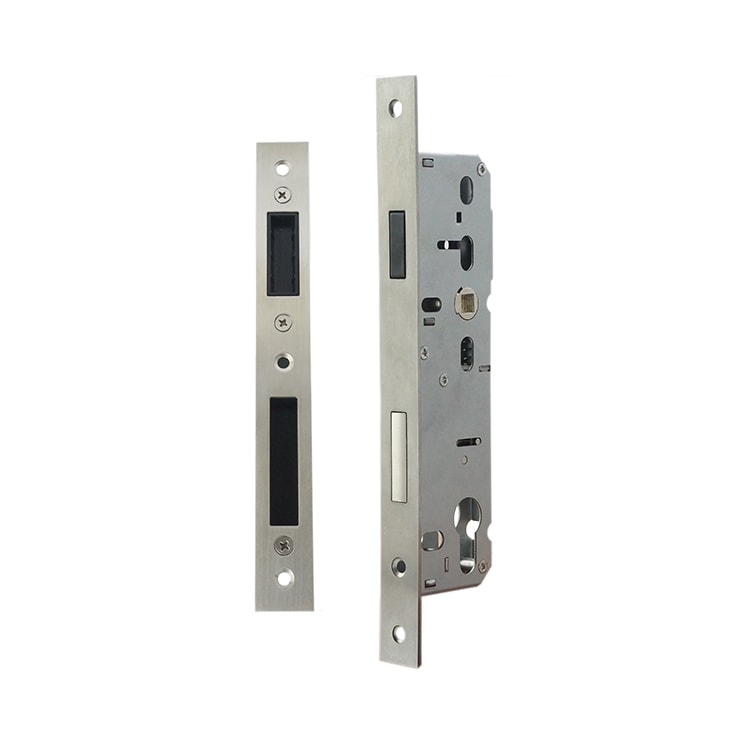

MG9210-35 magnetic mortise lock,35mm backset/92mm centers

Model No.MG9210-35
Latch TypeMagnetic latch
Center92mm
Backset Size35mm
Case Size(L*W*H)187mm*52.5mm*13.4mm
Forend/Plate Size220mm*23mm
Finish(Forend/Strike)Satin, Custom finishes



 >> Get Complete Mortice Lock Catalog

Print It
  • Product Detail

MG9210-35 magnetic mortise lock is suitable for timber doors requiring silent closing action.

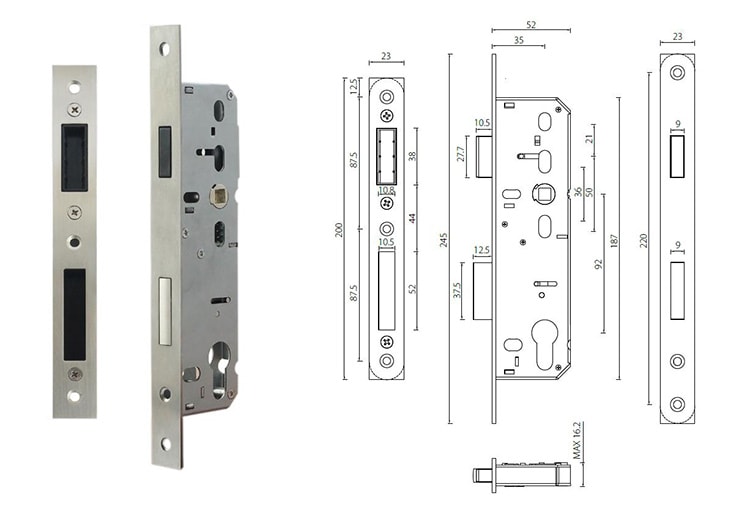

MG9210-35 magnetic mortise lock-4

Specifications and Feature
– 92mm standard center distance with 35mm backset
– Magnetic latch designed for reducing installation gap
– Multiple through bolt holes available for wide trim options
– Non handed installation
– Solid brass deadbolt providing additional security
– Can be used as passage or entrance function
– Stainless steel forend and strike for strong corrosive resistance
– Suitable for sprung and most unsprung lever handle



Forend and Strike Finish
Satin Stainless Steel
*Other finishes available upon request
