Mortise deadlock for communicating function/ML107203

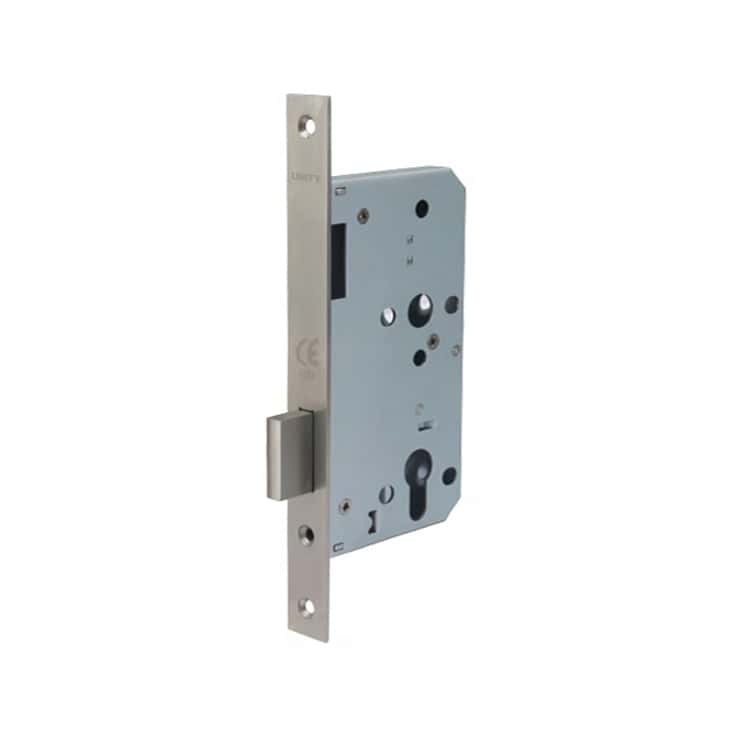

ML107203 communicating mortise deadlock

Model No.	ML107203
Finish（Forend/Strike)	Satin
Centers	72mm
Case Size(LWH)	1657920mm
Forend/Plate Size	209*20(24)mm

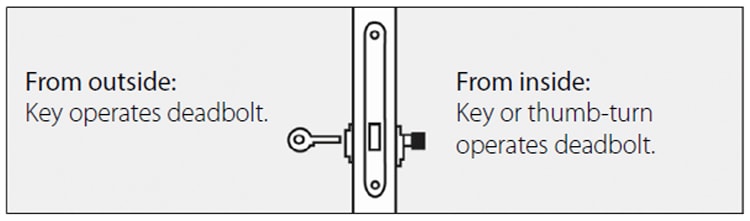

Function	Deadlock/Communicating
Door Type	unlatched doors
Standard/Certificate	EN12209:2003
Fire Certificate	Certifire CF5333
Fire Test	240minutes

>> Get Complete Mortice Lock Catalog

ML107203 communicating mortise deadlock is suitable for unlatched doors with a deadbolt locking security.

ML107203 communicating mortise deadlock - 4

Specifications and Features

– Modular case across functions for rapid door prepping and installation
– 72mm centers, backset in 50/55/60/65mm
– 8mm follower with spindle gripping function
– Double throw deadbolt in solid stainless steel with 20mm projection
– ML107203 communicating mortise deadlock is suitable for sprung, and most un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version
– Compatible with bolt through furniture and escutcheons of 38mm centers

EN12209:2003 Classification

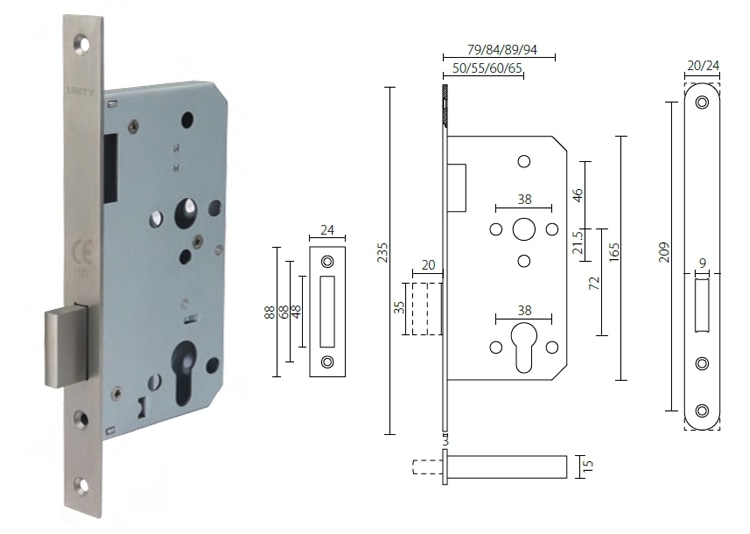

Illustration

ML107203 mortise deadlock for communicating

ML107203 mortise deadlock - 6

Forend and Strike Finishes

Satin

The matching finish on latch bolt and deadbolt
*Other finishes available upon request

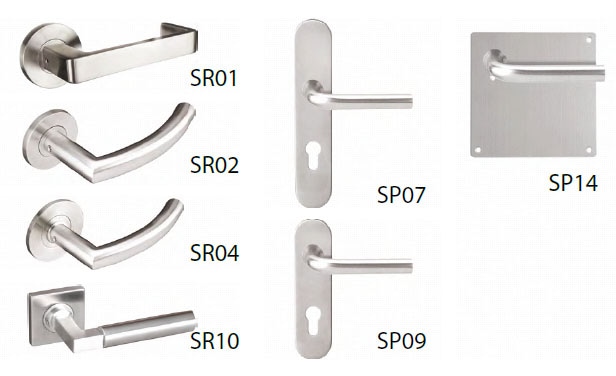

Trim Options:

ML1072 door mortise lock -Trim option

Lever Options

Thie mortise deadlock is suitable with any UNITY lever design

* Please refer to UNITY Lever Handle catalog for more detail on Lever and Trim options

About UNITY Door Mortice Locks
UNITY manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China.

The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.

>> Full Catalog Download
>> Quick Inquiry and Quote

	Successfully type-tested for conformity to all of the requirement of EN12209: 2003
	Successfully passed and exceeded the 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
	CE Declaration of Conformity available upon request
	Meets the dimensional recommendations of BS8300 and Approved Document “M”
	*UNITY ML1072 series locks are approved by Certifire. Certifire No. CF5333**
	All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test reports/certificates are available upon request.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products
