ML207205 privacy mortise lock set with deadbolt for bathroom door

Model No.ML207205
Finish(Forend/Strike)Satin
Backset size55/60mm
Centers72mm
Case Size(L*W*H)165*82*24mm
Forend/Plate Size210*24mm
FunctionBathroom/Privacy
Standard/CertificateEN12209:2003
Fire CertificateCertifire CF5333
Fire Test240minutes



 >> Get Complete Mortice Lock Catalog

Print It
  • Product Detail
  • Tests and Standards

UNITY ML207205 privacy mortise lock set is suitable for the bathroom door with deadbolt locking privacy. An emergency unlocking function is available by the coin release slot.

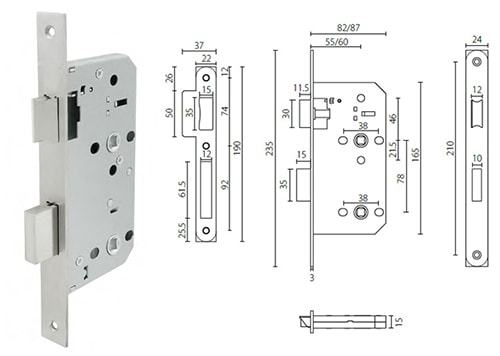

ML207205 bathroom privacy mortise lock set

Specifications and Features

– Modular case across functions for rapid door prepping and installation
– ML207205 privacy mortise lock set is available with 72mm center, backset in 55/60mm
– 8mm solid steel follower
– Easy reversible latchbolt in solid brass*
– Double throw deadbolt in solid steel with 20mm projection
– Suitable for sprung and light un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version
– Compatible with bolt through furniture and escutcheons of 38mm centers
*Convenient reversibility without tools

EN12209:2003 Classification

3S710G3BC20

ML207205 privacy mortise lock set for bathroom

Forend and Strike Finishes

107201 Entry Door Sashlock - Forend and Strike Finishes

Satin

The matching finish on latch bolt and deadbolt
*Other finishes available upon request

Trim Options:

ML1072 door mortise lock -Trim option

Lever Options

Suitable with any UNITY lever design

* Please refer to UNITY Lever Handle catalog for more detail on Lever and Trim options


About UNITY Door Mortice Locks
UNITY manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China. The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.

>> Full Catalog Download
>> Quick Inquiry and Quote

EN12209 for door mortise lockSuccessfully type-tested for conformity to all of the requirement of EN12209: 2003
UNITY door mortise lock with 240 minutes fire test to EN1634-1Successfully passed and exceeded the 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
CE for door mortise lockCE Declaration of Conformity available upon request
BS8300 iconMeets the dimensional recommendations of BS8300 and Approved Document “M”
Certifire CF5333 for UNITY door mortise lockUNITY ML1072 series locks are approved by Certifire.* Certifire No. CF5333
EN CE Certifire tests by Exova Warringtonfire Warrington APTAll EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test reports/certificates are available upon request.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products
