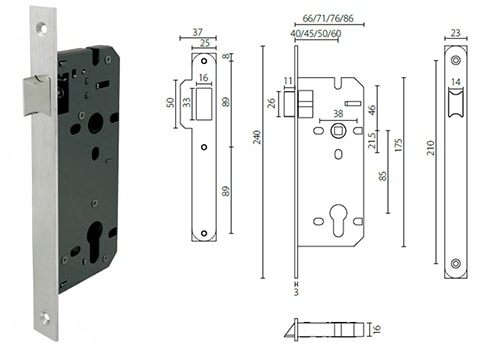

ML208502 mortise passage lock comes with an 85mm center, is suitable for unlocked latched doors.
Specifications and Features
– Modular case across functions for rapid door prepping and installation
– 85mm center, backset in 40/45/50/60mm
– 8mm sintered steel follower
– Easy* reversible latch bolt in Solid Brass
– Double throw deadbolt in solid steel with 20mm projection
– ML208502 mortise passage lock is suitable for sprung and light un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version
– Compatible with bolt through furniture and escutcheons of 38mm center
*Convenient reversibility with no tools required
EN12209:2003 Classification
| 3 | S | 7 | 1 | 0 | G | 3 | B | C | 2 | 0 |
Forend and Strike Finishes
 Satin | The matching finish on latch bolt and deadbolt *Other finishes available upon request |
Trim Options:
Lever Options
Suitable with any UNITY lever design
* Please refer to UNITY Lever Handle catalog for more detail on Lever and Trim options
About UNITY Door Mortice Locks
UNITY manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China. The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.
