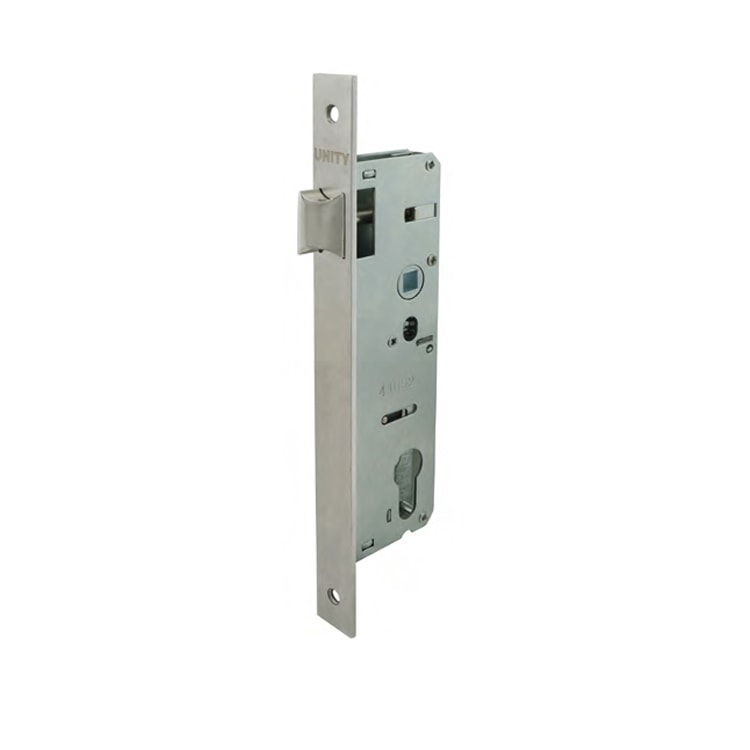

Narrow backset mortise latch lock, passage lock with 85/92mm Center, 20/25/30/35mm backset

Specifications and Features
– Suitable for latched doors remaining unlocked at all time
– ML30 narrow backset mortise latch lock is available in 85 and 92mm centers, and backset in 20/25/30/35mm
– 8mm spindle follower
– Easy reversible latch bolt design (no tools required)
– ML30 narrow backset mortise latch lock is suitable for Sprung, and Un-Sprung handle
– Stainless Steel faceplate and strike in various width to fit different aluminum, or uPVC profile requirement
– Modular case across functions for rapid door prepping and installation
– Successfully type-tested internally for conformity to all of the requirement of EN12209:2003

Forend and Strike Finishes
Satin Stainless Steel
*Other finishes available upon request
