Door Handle/

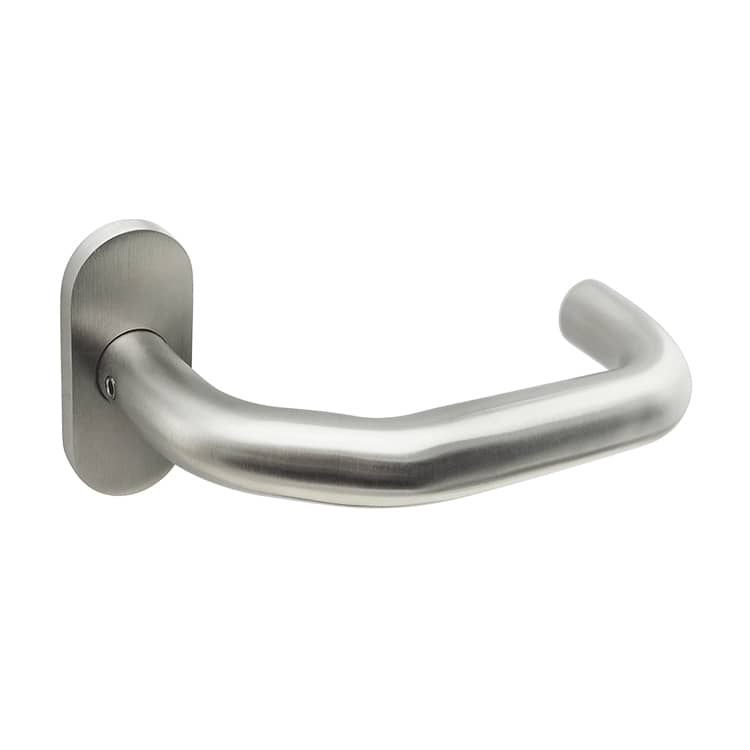

Narrow Profile Door Handle With Oval Rose Design

Model No.SR03SL114
MaterialStainless Steel AISI304 or custom
Oval Rose Size70*32mm
Lever Length150mm
Projection71mm
FinishSatin, Polished, PVD Titanium, or custom
ApplicationCommercial & Residential use
StandardEN1634, EN1906
Fire Test240minuts/4Hours



 >> Get Complete Door Handle Catalog

Print It
  • Product Detail
  • Tests and Standards

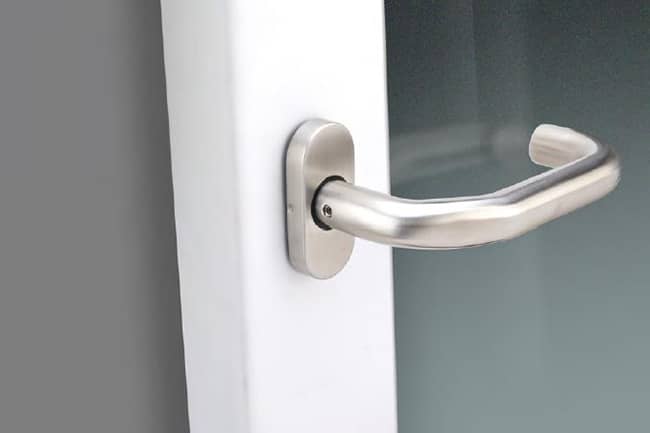

UNITY SR03SL114 series narrow door handle is designed with a 70*32mm oval rose,  so it is very suitable for narrow stile doors, french doors.

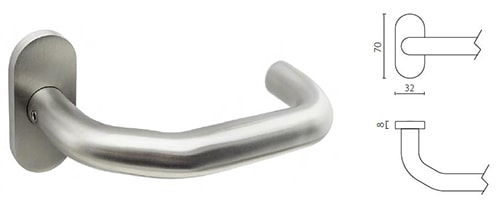

Narrow Profile Door Handle With Oval Rose Design SR03-5

Specifications and Features

– SR03SL114 narrow door handle has double action spring-loaded rose design,  upward or downward operation is OK.
– Concealed fixing
– Hexagonal countersank to assist thru-bolt fixing
– Successfully type-tested for conformity to all of the requirements of EN1906: 2010, including 240-hours of corrosion resistance requirement of EN1670:2007.
– Standard Finish: Satin Stainless Steel (Other finish available on request)

Narrow Profile Door Handle SR03SL114

Escutcheon Options

SR03 profile door handle escutcheon option-blind

Blind

SR03 profile door handle escutcheon option-euro cylinder

Euro Cylinder















Finishes

– Satin Stainless Steel (US32D/630)
– Polished Stainless Steel (US32/629)
– Satin PVD Titanium
– Bright PVD Titanium

Available finishes of Entry Door Handle Lever Set SR01 En1906 Grade 4



Door handle's type test to EN1906Successfully type-tested for conformity to all of the requirements of EN1906: 2010

(including 240-hours of corrosion resistance requirement of EN 1670:2007)

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 2EN1906 Grade 4 tested fire door handle lever has successfully passed 240-minutes fire

test of metal door assemblies to EN 1634-1: 2014

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 3All tests performed independently and certified by Exova/Warringtonfire/Warrington APT.

Test reports and/or certificates are available upon request
