Euro Cylinder/

OCS-Z201 double keyed storm door lock cylinder double cam design

Model No.OCS-Z201
MaterialZamak & Brass
Total Length52mm(26/26), or custom
FeatureDouble Cam design
TypeDouble profile cylinder
FinishCP/SN/AB, Custom



 >> Get Complete Euro Cylinder Catalog

Print It
  • Product Detail

UNITY OCS-Z201 storm door lock cylinder is made of Zamak body, Zamak core, and brass keys with double cam design, independent key operation from each side.

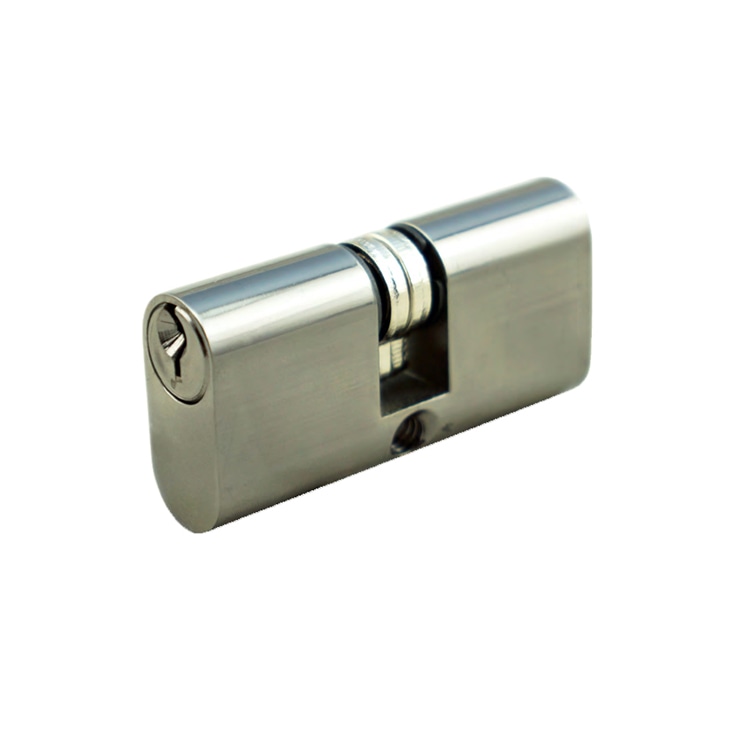

OCS-Z201 storm door lock cylinder



Specifications and Features
– OCS-Z201 double keyed storm door lock cylinder is made of Zamak Body and Zamak Core
– Brass Keys
– Double cam design for independent key operation from each side
– Standard finishes: Chrome Plated (CP), Satin Nickel (SN), Antique Brass (AB)

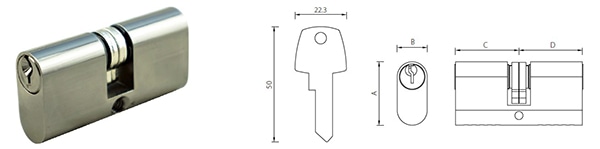

Item No.A (mm)B (mm)C (mm)D (mm)
OCS-Z20125.912.92626
OCS-Z20227.812.627.527.5




About UNITY Euro Cylinder
UNITY’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliance to EN1303:2005 standards for commercial/industrial standards.
