UNITY flush door hinge HFS4030 is made of satin stainless steel with two ball bearings, it is a special hinge type used for lightweight doors, its installation needs no recess, very great for space saving.

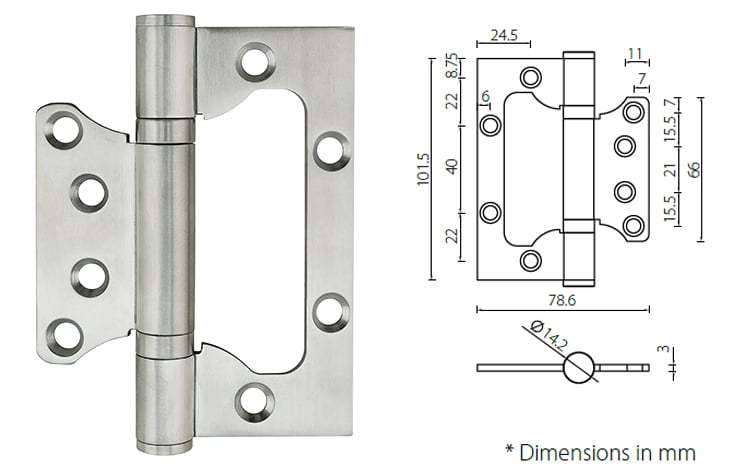

Item No. | L(mm) | W(mm) | Thickness(mm) | Door Mass(kg) |
HFS4030 | 102 | 78 | 3.0 | 60 |
Standard Finish: Satin Stainless Steel
Specifications and Features
– Material: Stainless steel
– Square radius door hinge with small leaf plate to fit the other mounting leaf
– Max. door weight: 60kg
– Installation screws available
– Application: Light weight doors less than 60kg
