SP07 Door Handle With Plate For Commercial & Residential Use

Model No.SR07SL102
MaterialStainless Steel AISI314
Plate Size229*44mm
Lever Length140mm
Projection62mm
FinishSatin, Polished, PVD Titanium, or custom
UseCommercial and residential use
StandardEN1634, EN1906
Fire Test240minuts/4Hours



 >> Get Complete Door Handle Catalog

Print It
  • Product Detail
  • Tests and Standards
  • Certificates

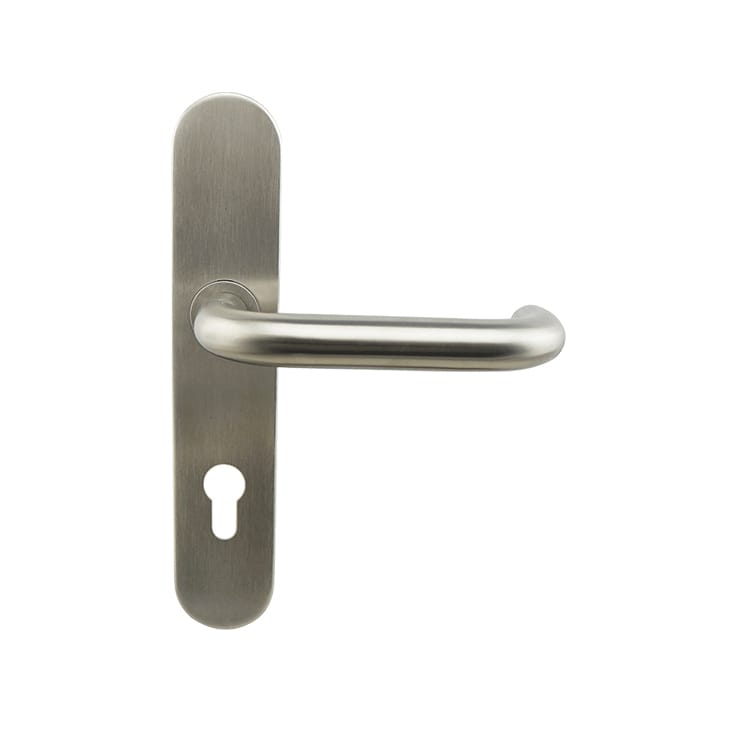

UNITY SP07SL102 door handle with plate 229*44mm is built for commercial and residential applications. For the function, this long size plate door handle set is available for passage, privacy, dummy use.

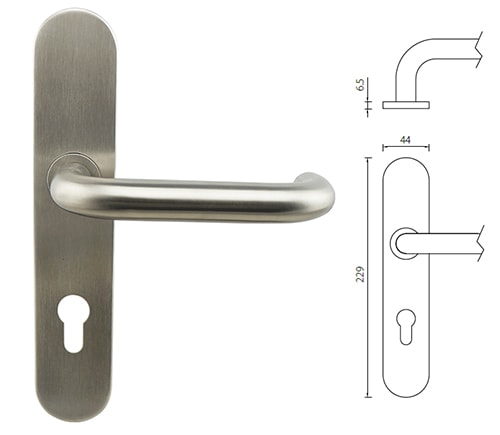

Long Plate Door Handle For Commercial & Residential Use-application



 Specifications and Features

– EN1906 Grade 3 tested and EN1634-1 fire rated
– SP07SL102 door handle is made of stainless steel AISI304
– Concealed fixing
– Loaded with a spring mechanism
– Compatible with both 72mm and 85mm center mortice locks and perfectly fitted with UNITY ML10/ML20 series mortice lock
– Hexagonal countersank to assist thru-bolt fixing
– Good for retrofitting (to cover unwanted screw positions)



Escutcheon Options

SP07 door handle escutcheon options-blind

Blind

SP07 escutcheon options-euro cylinder

Euro Cylinder

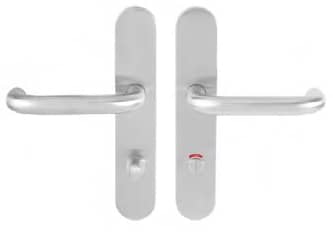

SP07SL102 escutcheon options-privacy thumb turn release set

Privacy Thumb Turn and Release Set

Finishes

– Satin Stainless Steel (US32D/630)
– Polished Stainless Steel (US32/629)
– Satin PVD Titanium
– Bright PVD Titanium

Available finishes of Entry Door Handle Lever Set SR01 En1906 Grade 4



EN1906:2010 Classifications

371140B
Door handle's type test to EN1906Successfully type-tested for conformity to all of the requirements of EN1906: 2010

(including 240-hours of corrosion resistance requirement of EN 1670:2007)

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 2EN1906 Grade 4 tested fire door handle lever has successfully passed 240-minutes fire

test of metal door assemblies to EN 1634-1: 2014

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 3All tests performed independently and certified by Exova/Warringtonfire/Warrington APT.

Test reports and/or certificates are available upon request
