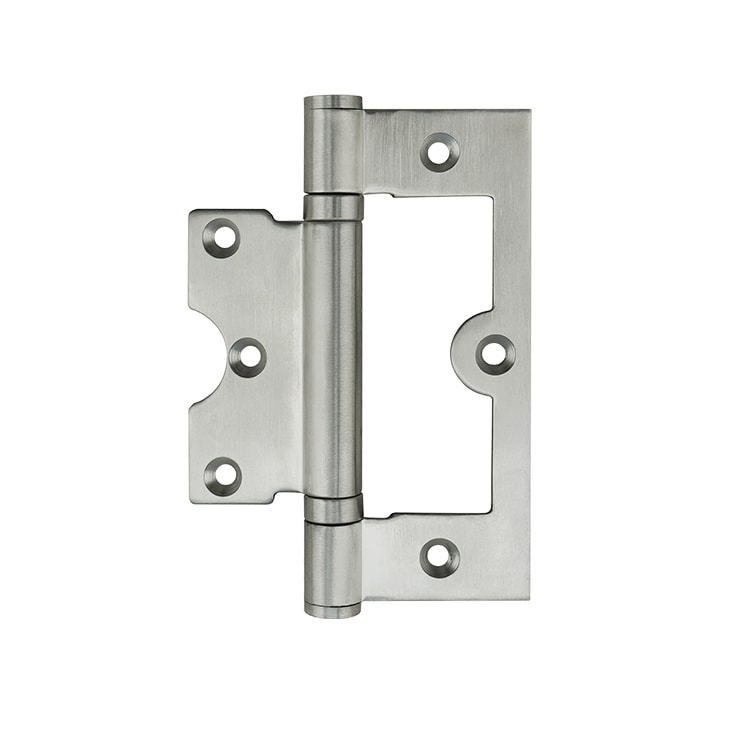

UNITY flush butt hinge HFS4025 is made of satin stainless steel with two ball bearings, it is a special hinge type used for lightweight doors, its installation needs no recess, very great for space saving.

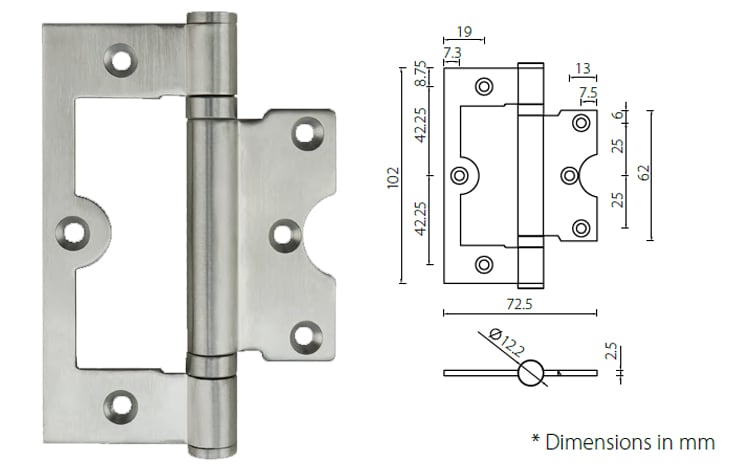

| Item No. | L(mm) | W(mm) | Thickness(mm) | Door Mass(kg) |
| HFS4025 | 102 | 72 | 2.5 | 40 |
Standard Finish: Satin Stainless Steel
Specifications and Features
– Material: Stainless steel
– Square radius door hinge with small leaf plate to fit the other mounting leaf
– Max. door weight: 40kg
– Installation screws available
– Application: Light weighted wooden or metal doors less than 40kg
