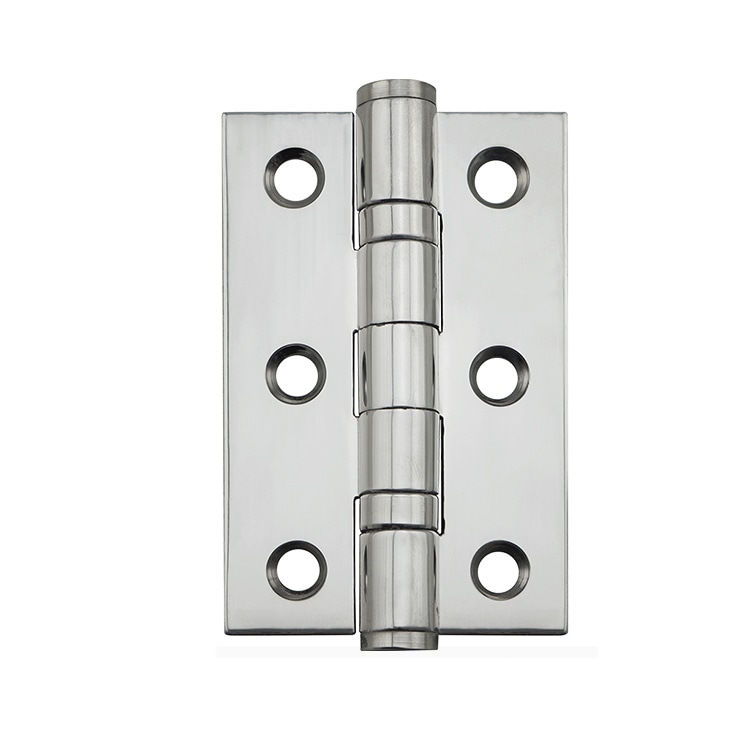

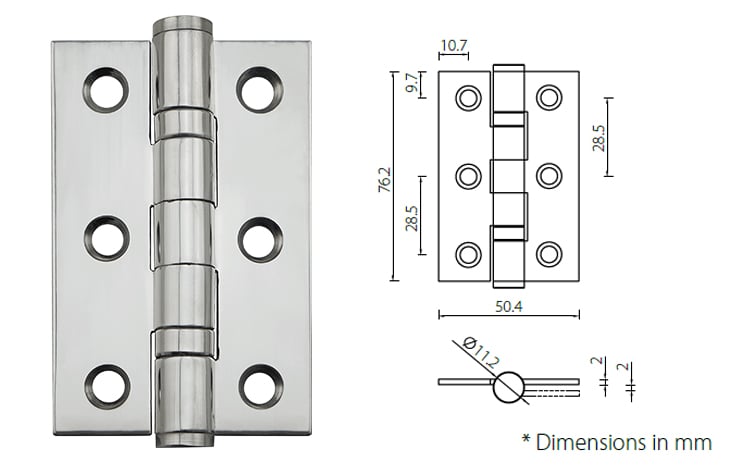

Stainless steel 3” x 2” x2mm ball bearing mortice door hinge

Stainless ball bearing mortice door hinge HB302020 is manufactured to engineering standards to provide high performance.

Specifications and Features

– AISI304 stainless steel material for high corrosion resistance (AISI316 material available)
– Hardened Ball Bearings
– Square and radius corner version available
– Template drilled for easy installation and retrofitting purpose
– Designed for metal or timber fire rate door set
– Dogbolt version optional for enhanced security
– Stainless ball bearing mortice hinge HB302020 is suitable for a wide range of door thickness/weight
– Supplied with CSK stainless steel screws

Finishes

– Satin Stainless Steel (US32D/630)
– Polished Stainless Steel (US32/629)
– Satin PVD Titanium
– Bright PVD Titanium

*Other finishes available on request
