Stainless steel door handle for commercial use En1906 Grade 3

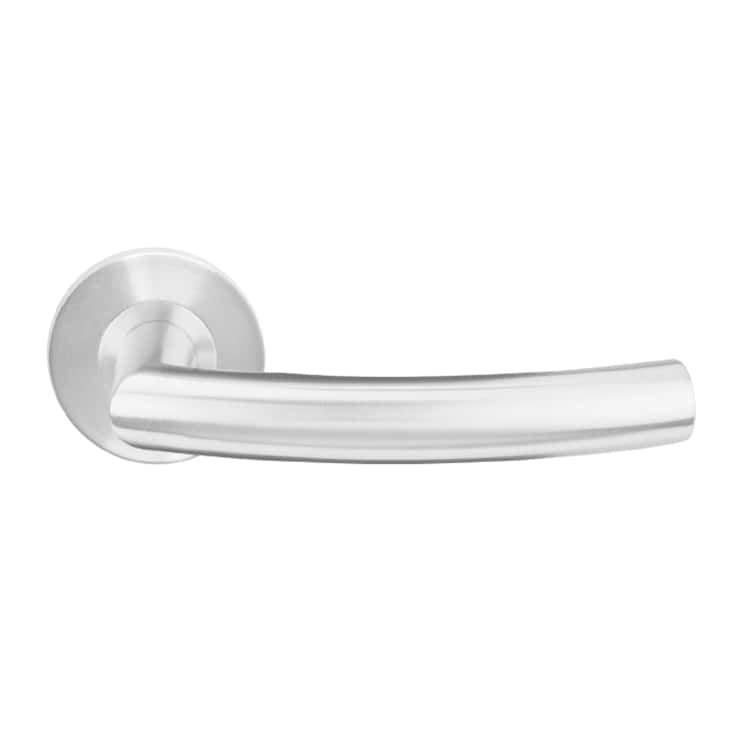

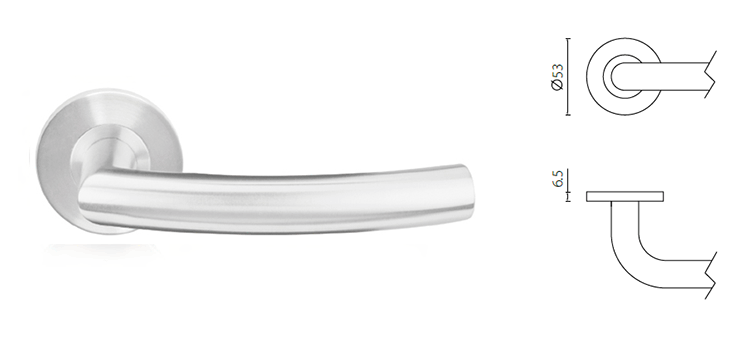

UNITY stainless steel door handle SR02SL103 is built with optimized design for interior and exterior doors, they are suitable for most commercial and residential applications.

Specifications and Features

– EN1906 Grade 3 tested and EN 1634-1 fire rated stainless steel door handle

– Made of stainless steel AISl304 (A1S1316 available on request)

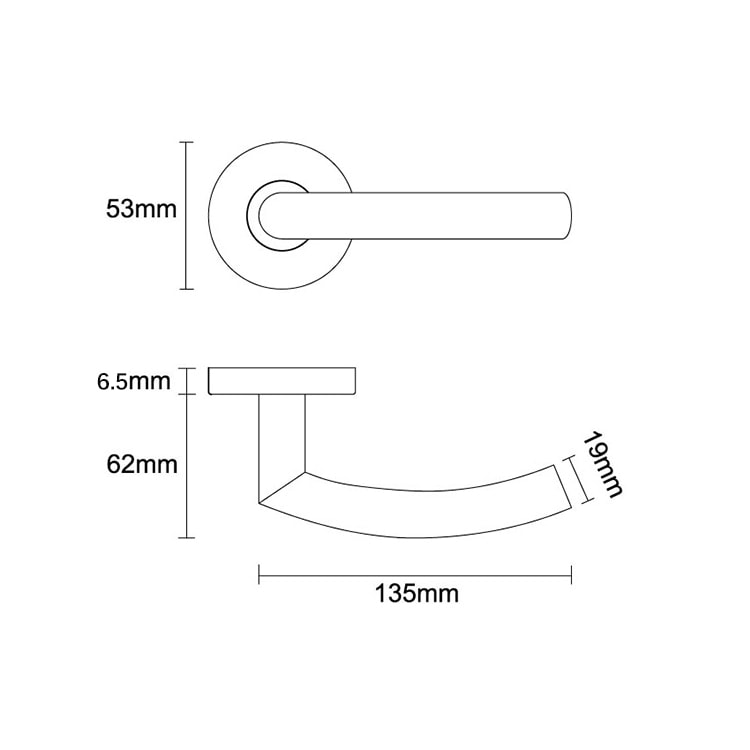

– 6.5mm rose design to preserve the minimum height with a spring mechanism

– Concealed screw fixing

– Inner rose indentation to secure the rose cover with a “clean” look on the handle

– Hexagonal countersunk to assist thru-bolt fixing

– The architectural look achieved by minimum edge radius on rose cover

Finishes

– Satin Stainless Steel (US32D/630)
– Polished Stainless Steel (US32/629)
– Satin PVD Titanium
– Bright PVD Titanium

*Other finishes available on request

	Successfully type-tested for conformity to all of the requirements of EN1906: 2010 (including 240-hours of corrosion resistance requirement of EN 1670:2007)
	EN1906 Grade 4 tested fire door handle lever has successfully passed 240-minutes fire test of metal door assemblies to EN 1634-1: 2014
	All tests performed independently and certified by Exova/Warringtonfire/Warrington APT. Test reports and/or certificates are available upon request

EN1906:2010 Classifications
