SP04 narrow plate uPVC door handle 70mm for slim profile doors

Model No.SP04SL104
MaterialSS, Aluminum, Zinc Alloy upon request
Plate Size220*26mm
Lever Length135mm
Lock Centers70/72/85/90/92mm
Lever TypeOptional
FinishSatin, Polished, PVD Titanium, or custom
ApplicationUPVC and composite doors
Standard/TestEN1906: 2010, EN1670:2007
Complete LocksetsAvailable



 >> Get Complete Door Handle Catalog

Print It
  • Product Detail

UNITY SP04SL104 uPVC door handle 70mm has a very narrow plate, this feature makes it suitable for slim profile doors. Fit European mortice lock with 72/85/90/92mm centers.

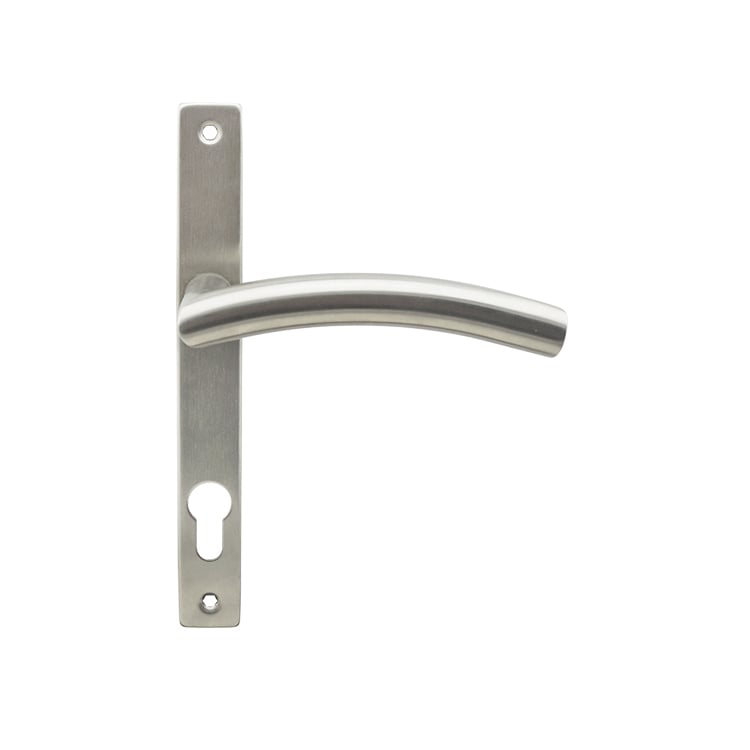

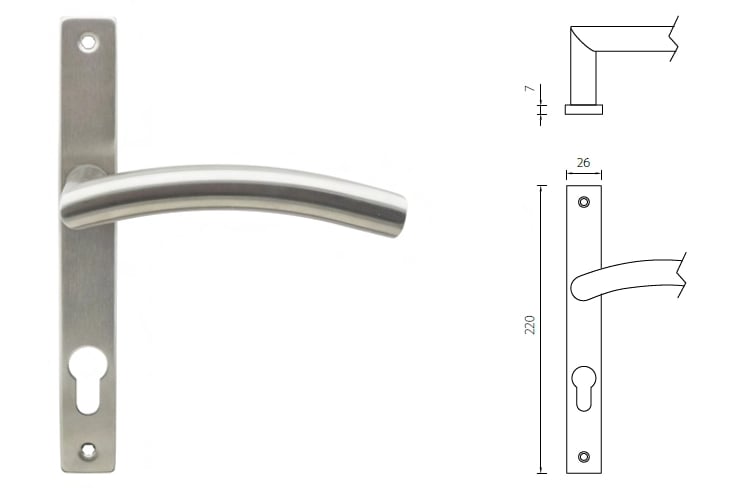

SP04SL104 narrow plate uPVC door handle 70mm



Specifications and Features

– Face fix design
– Spring-loaded plate design
– for most of the European mortice lock (70/72/85/90/92mm centers)
– Successfully type-tested for conformity to all of the requirements of EN1906: 2010
– 240-hours of corrosion resistance requirement of EN1670:2007

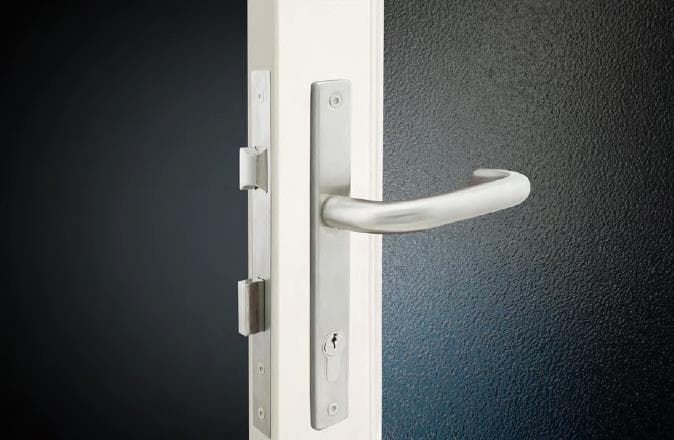

SP04SL104 narrow plate uPVC door handle 70mm-application

Finishes

– Satin Stainless Steel (US32D/630)
– Polished Stainless Steel (US32/629)
– Satin PVD Titanium
– Bright PVD Titanium

Available finishes of Entry Door Handle Lever Set SR01 En1906 Grade 4
