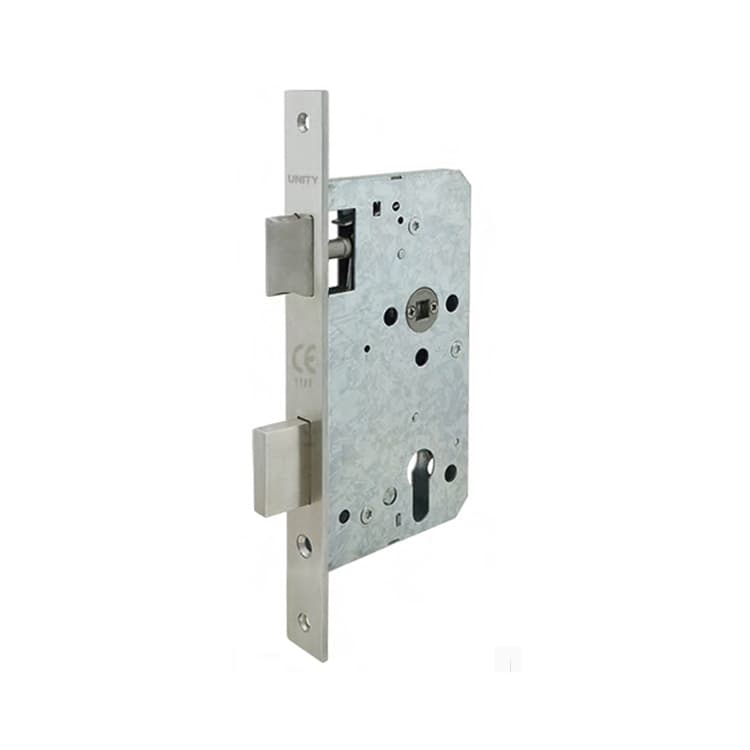

ML107206 emergency exit mortise lock with deadbolt for escape doors

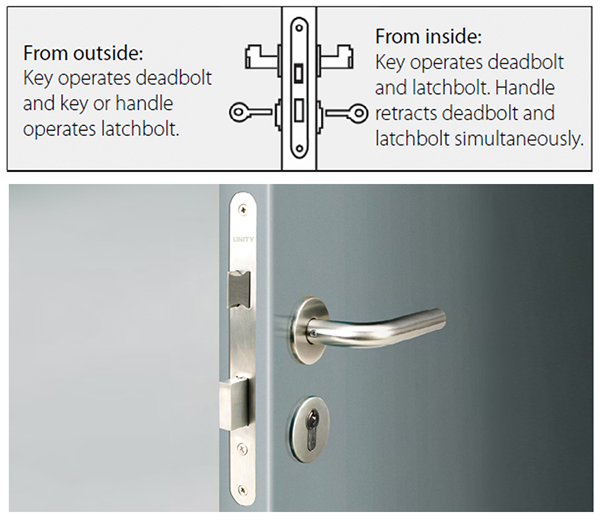

UNITY ML107206 emergency exit mortise lock is suitable for escape doors requiring deadbolt locking. From outside: the key operates deadbolt and key or handle operates latch bolt. From the inside: the key operates deadbolt and latch bolt. The handle retracts deadbolt and latchbolt simultaneously.

Specifications and Features

– ML107206 emergency exit mortise lock has a modular case across functions for rapid door prepping and installation
– 72mm centers, backset in 60mm
– 8mm follower with spindle gripping function
– ML107206 emergency exit mortise lock has a reversible latch bolt in solid stainless steel
– Double throw deadbolt in solid stainless steel with 20mm projection
– Suitable for sprung and most un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
– Compatible with bolt through furniture and escutcheons of 38mm centers

EN12209:2003 Classification

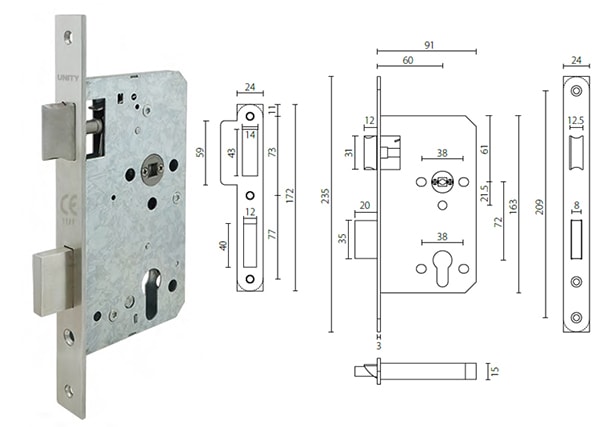

Illustration

Forend and Strike Finishes

Satin

The matching finish on latch bolt and deadbolt *Other finishes available upon request

Trim Options:

Lever Options

Suitable with any UNITY lever design

* Please refer to UNITY Lever Handle catalog for more detail on Lever and Trim options

About UNITY Door Mortice Locks
UNITY manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China. The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.
